Boxes Pallets Transport 150kg/M 100mm Low Floor Chain Roller Conveyor

Product Categories
Pengya Intelligent Technology (Shanghai) Co., Ltd.
Contact Now

Boxes Pallets Transport 150kg/M 100mm Low Floor Chain Roller Conveyor

  • 1
  • 2
  • 3

Brand Name : pengya

Model Number : CLA&AC-C

Certification : ISO

Place of Origin : shanghai

MOQ : one unit

Price : Please Contact Us For The Price

Supply Ability : For more than a week

Delivery Time : about week days

Packaging Details : wood

Payment Terms : T/T,

Type : CLA150T

Maximum handling weight(kg/m) : 150

Wheel size D×t(mm) : Φ57*2.1

Shaft diameter d(mm) : φ12(stick)

Frame sizeF×G×T(mm) : 90×30×2.3

Actual wheel size, width(mm) : W+2

Machine width MW(mm) : W＋103

Machine internal width NW(mm) : W＋43

Sprocket size(mm) : No.40×N10

Sprocket material : steel

Roller width W(mm) : 300∼800

Roller interval P(mm) : 75-100-150-200

Machine length L(mm) : 1500(1600)-12000

Machine height H(mm) : 100Low floor

Motor capacity (kW) : 0.2・0.4

Handling speed(m/min) : 4-26

Power supply (v) : 200・220

Contact Now

Carrying 150kg Low-floor chain roller conveyor for moving boxes , pallets or tires

Standard style:

Type CLA150T AC-C150T
Transporting conveyor Cumulative conveyor

Main style

 Maximum handling weight(kg/m) 150
Wheel size D×t(mm) Φ57*2.1
Shaft diameter d(mm) φ12(stick)
Frame sizeF×G×T(mm) 90×30×2.3
Actual wheel size, width(mm) W+2 W
Machine width MW(mm) W＋103
Machine internal width NW(mm) W＋43
Sprocket size(mm) No.40×N10
Sprocket material steel

Production range

 Roller width W(mm) 300∼800
Roller interval P(mm) 75-100-150-200
Machine length L(mm) 1500(1600)-12000
Machine height H(mm) 100Low floor
Motor capacity (kW) 0.2・0.4
Handling speed(m/min) 50hz 4-26
60hz 5-31
Power supply (v) 200・220

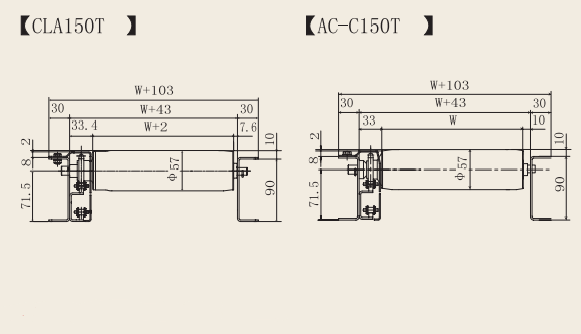

Dimensions:

Boxes Pallets Transport 150kg/M 100mm Low Floor Chain Roller Conveyor

Boxes Pallets Transport 150kg/M 100mm Low Floor Chain Roller Conveyor

Product Description:
1. The main structure of the equipment is made of high-strength plate bending and robot welding;
2. The rollers adopt galvanized pipe, which has high corrosion resistance .
3. Adopt the most advanced CNC bending machine to bend;
4, Suitable for conveying all kinds of flat materials, the transmission is flexible and not deviation. Such as: carton, wood, ceramics, etc.;
5, The main beam feet spray plastic, roller surface electroplate, with good anti-rust effect,and more durable;
6, The height of the feet can be adjusted to meet the uneven ground demand.

Boxes Pallets Transport 150kg/M 100mm Low Floor Chain Roller ConveyorBoxes Pallets Transport 150kg/M 100mm Low Floor Chain Roller Conveyor

Boxes Pallets Transport 150kg/M 100mm Low Floor Chain Roller Conveyor

Note:If you are the ultimate owner,You can contact us to choose the model.
